AR Image Target Generator
A web utility to generate high-performance tracking markers for XR applications, optimized for dense feature distribution in marker-based AR systems.
Overview
When developing AR applications using marker-based tracking (like Vuforia SDK in Unity), the quality of your image targets directly impacts tracking stability and accuracy. Poor markers lead to jittery overlays, lost tracking, and frustrated users.

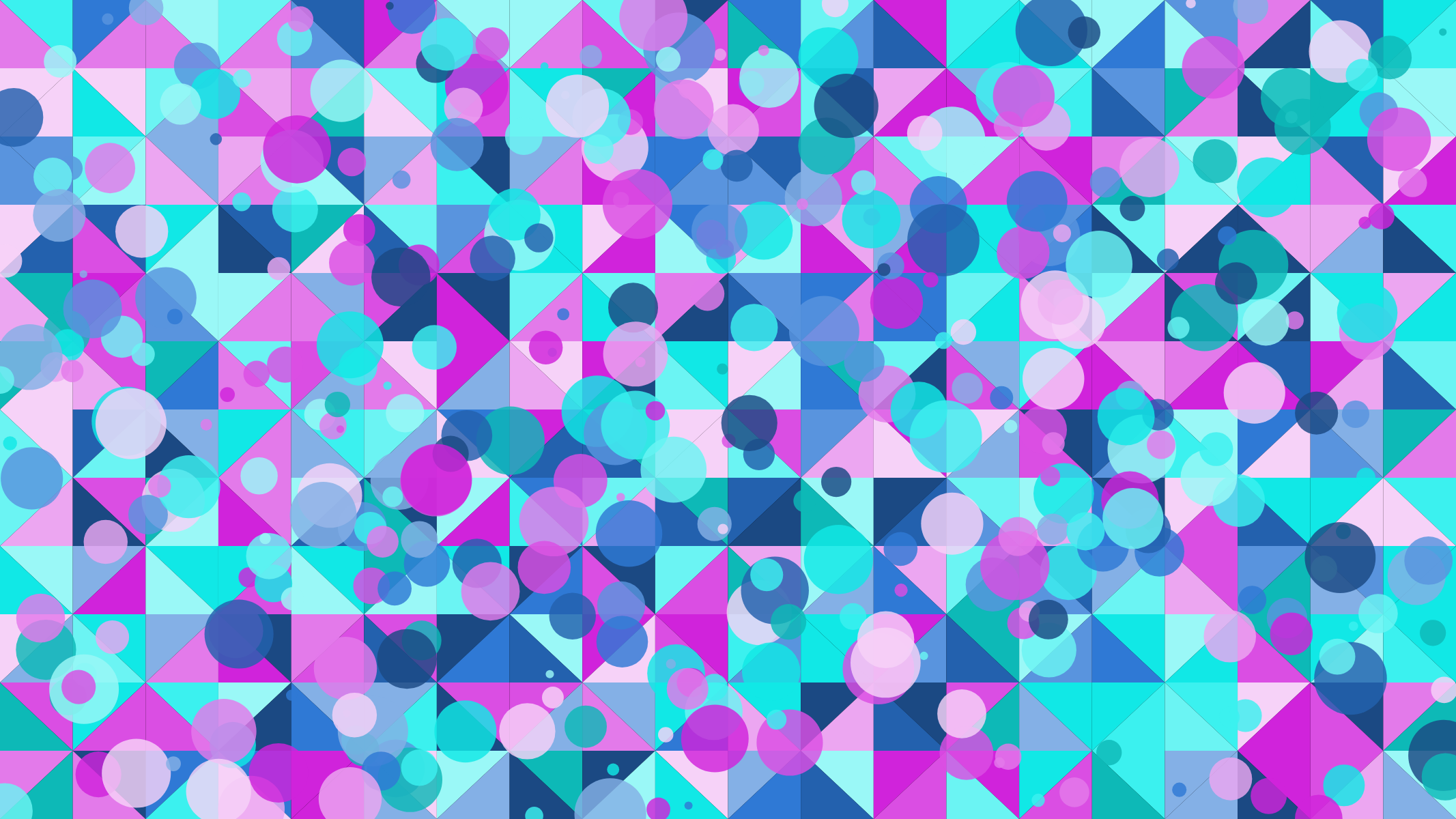

This tool generates procedural image targets optimized for high trackability scores. It creates patterns with dense, well-distributed features that AR systems can reliably detect and track in real-world conditions.
"The difference between a 3-star and 5-star Vuforia rating can make or break your AR experience."
The Problem
During my Master's thesis work on AR-assisted laboratory workflows, I needed reliable image targets for physical equipment markers. The standard approach—using printed logos or random images—often resulted in poor tracking. Key issues included:
- Low feature density in typical images (large flat areas)
- Repetitive patterns causing ambiguous detection
- Poor contrast or feature distribution
- Targets that worked in testing but failed in real lab lighting
Solution
The generator uses the HTML5 Canvas API to create procedural patterns optimized for AR tracking. The algorithm ensures:
- High feature density: No large uniform areas that trackers can't latch onto
- Non-repetitive patterns: Each region is visually distinct for unambiguous detection
- Good contrast distribution: Sharp edges and varied luminance values
- Consistent results: Generated targets reliably achieve 4-5 star Vuforia ratings
How It Works
The tool runs entirely in the browser with no server dependencies. Users can customize the output resolution and download the generated target as a PNG file ready for printing or import into Vuforia Target Manager.
The generation algorithm is deterministic, so you can recreate the same target by using the same seed value—useful for version control and documentation.
Results
Generated targets consistently score 4-5 stars in Vuforia's target rating system, compared to 2-3 stars for typical images. This translates to more stable tracking, faster initial detection, and better performance at oblique viewing angles.
The tool was used throughout my thesis research and continues to be a handy utility for AR prototyping work.
